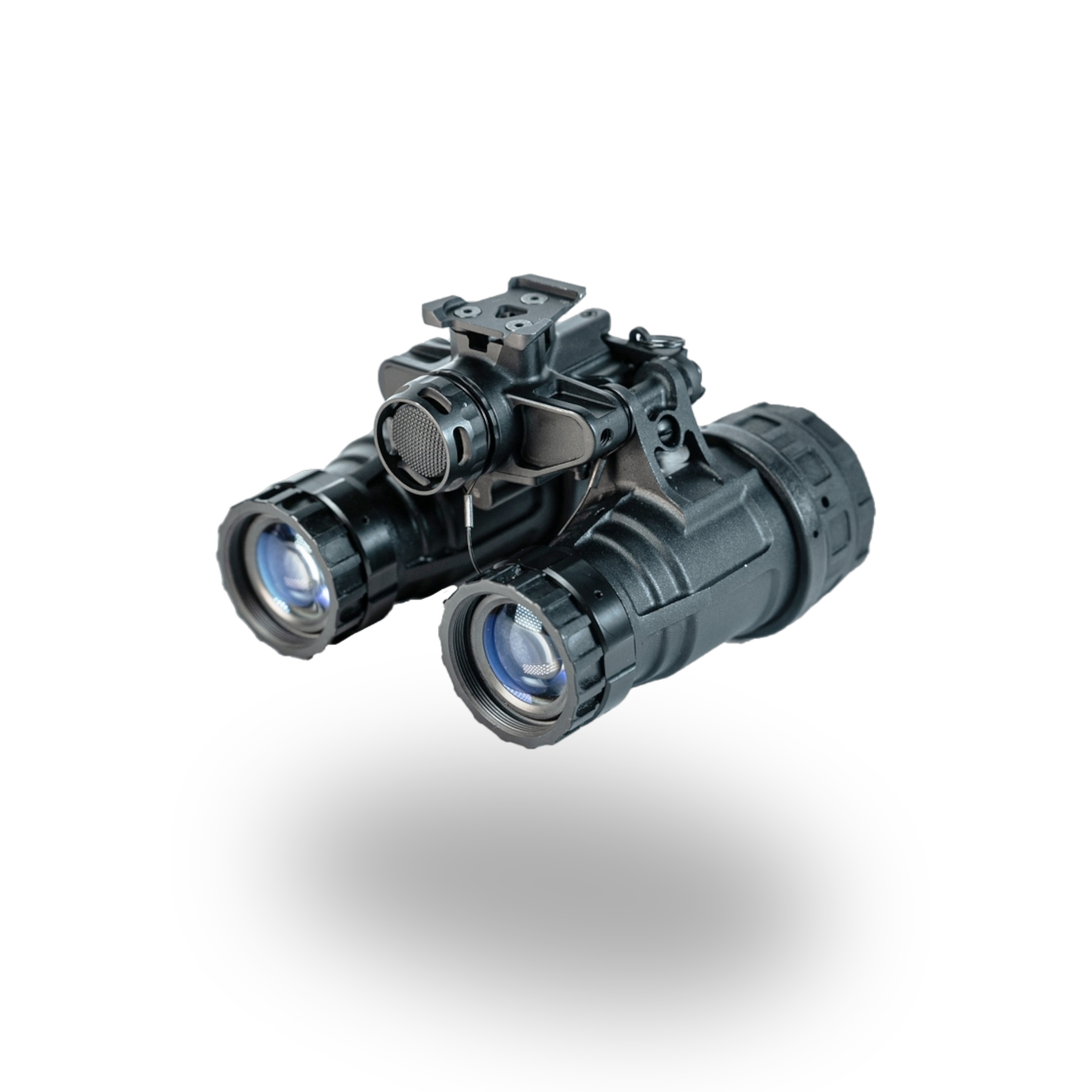

The Ultralight Articulating Night Vision Binocular (UANVB “Katana”) remains the lightest binocular on the market, with on board power, weighing in less than 15 oz fully built.
The articulating design allows for individual pod shut off, enabling the user to use one or both eyes while utilizing weapon mounted, non-passive aiming systems. End users will be able to mount and dismount vehicles easier with the low profile of the UANVB when stowed. The UANVB features the original Friction Lock Interpupillary Adjustment feature so you can set it and forget it with no additional tools. This unit may be lightweight but does not compromise strength as it exceeds MIL-STD-810G and had been drop tested beyond NATO or TOP standards (6 feet to concrete in 6 different orientations on a single device).
Material
Coating
Housing Weight
IR Illuminator
Device Weight Standard
Individual Pod On/Off
Device Weight Lightweight
Tube Type
Power Options
Ingress Rating
Manual Gain Control
Low Battery Indicator
High-Strength Hybrid Fiber Reinforced Injection Molded Polymer
Matte Black (Standard) - H-Series Cerakote for Coyote Brown and OD Green
3.92 oz / 0.25 lbs / 111 g
No
19.09 oz / 1.20 lbs / 541 g
Yes, Individually
14.64 oz / 0.92 lbs / 415 g
18mm MX-10160 or MX-11769 Style (EGAC Pigtail Removed)
On-Board: CR123A (~25 Hours Runtime) - Out-Board: LEMO-OOB 2-Pin
Exceeds IP-68 and MIL-STD-810H
No
Yes
