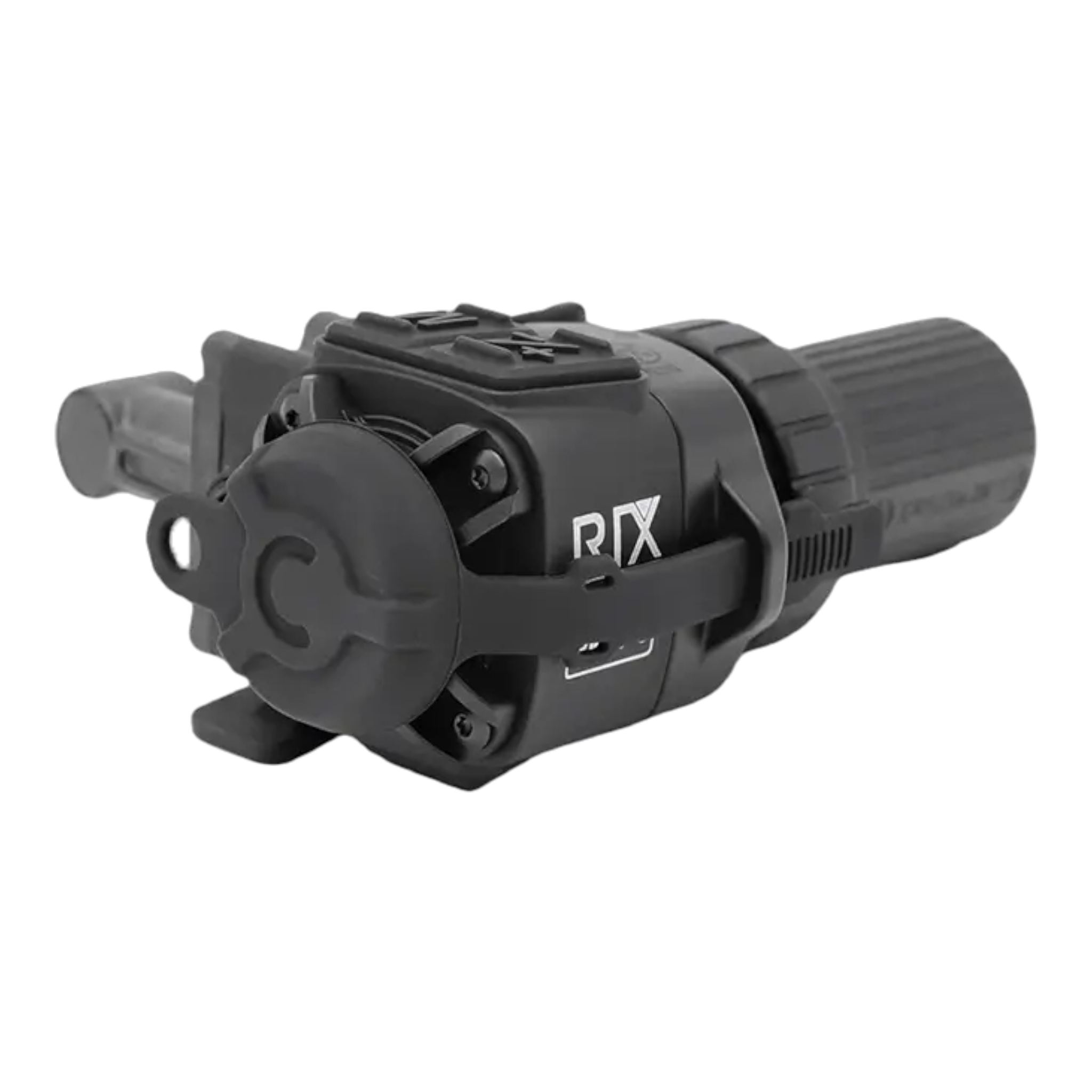

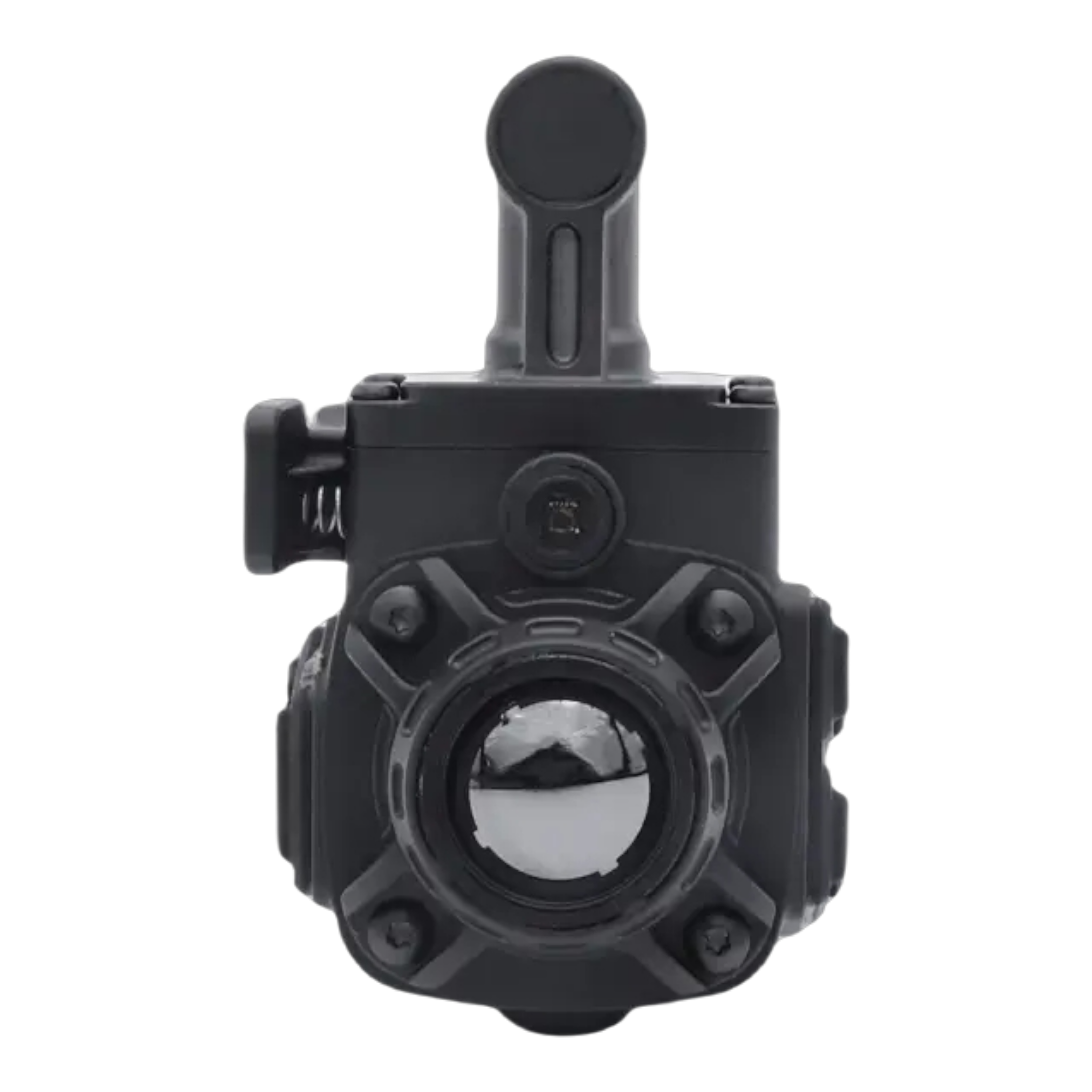

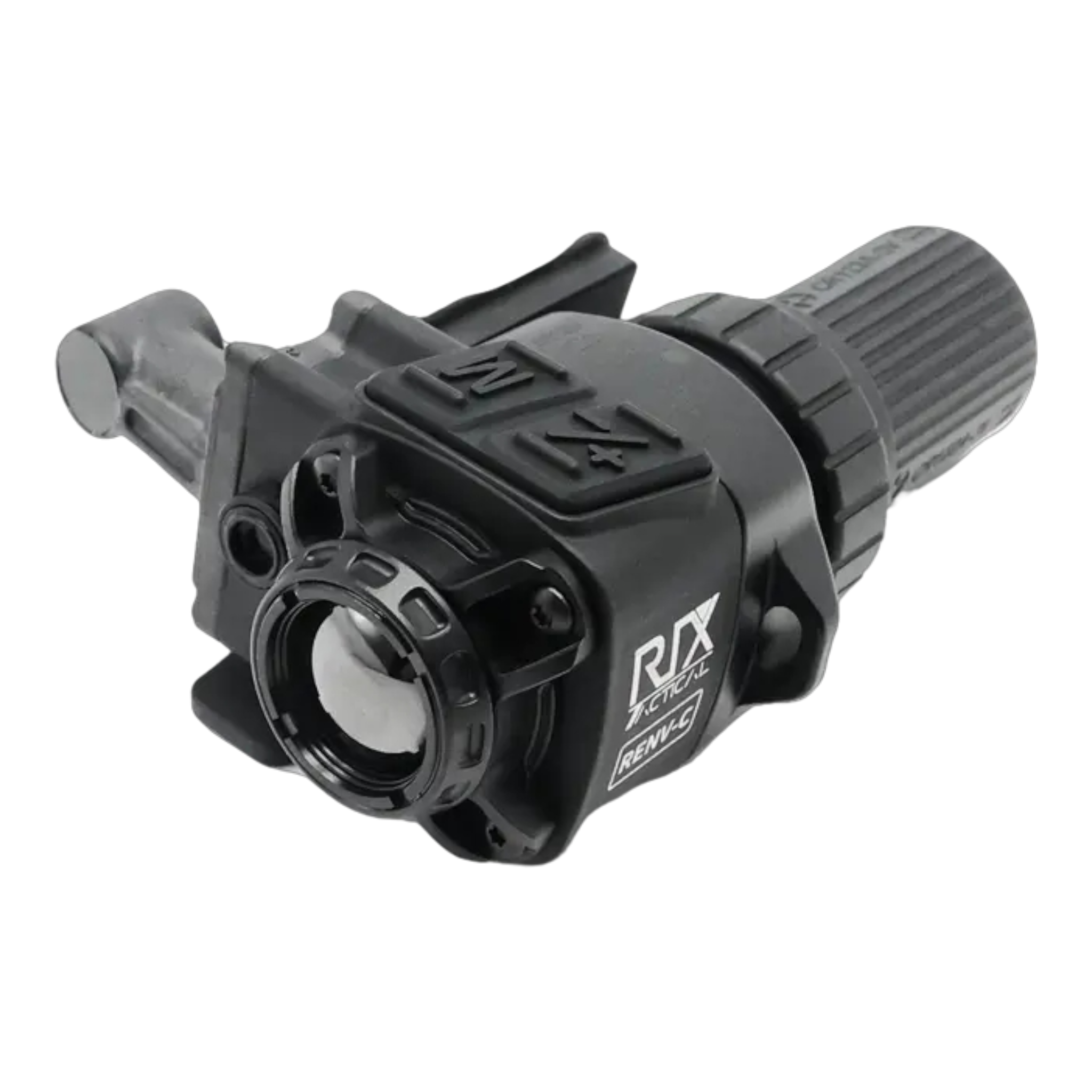

The RENV-C is a lightweight, convenient, and easy-to-use infrared thermal clip-on device. It rapidly enhances night vision devices with thermal imaging capabilities.
Mounted externally using a bracket, it allows for quick disassembly and requires no calibration for straightforward use.
Magnification: 1.0x
Thermal Sensor: 640×512-12μm
FOV: 35°×30°
Recognition Distance: 275m（Target size: 1.7m×0.5m, P(n)=99%）
Warranty: 5 Years
The RENV-C can be powered via a double-ended cable that connects to the same battery pack used by the RNV-31S, significantly extending operating time.

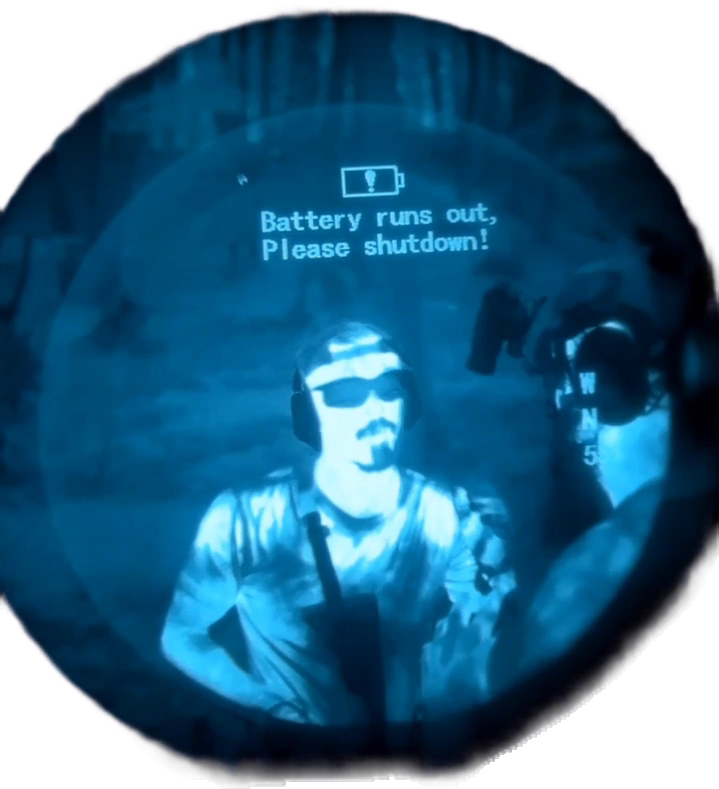

The RENV-C can be swiftly integrated with night vision devices to provide fused images. It offers multiple imaging modes to accommodate various scenarios and user needs.
The Bluetooth remote control enables wireless operation of the RENV-C within a certain range, allowing users to control the device without direct contact. This feature greatly enhances ease of use.
The RENV-C is equipped with an electronic compass and GPS positioning system to prevent disorientation in the field and offer users robust navigation assistance.
Thermal Sensor
Aperture
Magnification
FOV (H × V)
Recognition Distance
Image Modes
Automatic Control
Bluetooth Remote Control
Compass
Power
Battery Life (22°C)
Compatible Devices
Minimum Fusion Distance
Operating Temperature
Weight
Dimension
Waterproof
640×512-12μm
F / 1.0
1×
35° × 30°
275m (Target size: 1.7m × 0.5m, P(n)=99%)
Highlight / Outline / Breath
ABC, Automatic Shutdown, Auto Standby
2.4GHz
Electronic Compass (degree)
1× CR123A Battery (Optional Battery Pack)
3 Hours (1× CR123A), 12 Hours (Battery Pack)
PVS-14 (RNVG, DTNVS, 1431), L3Harris BNVD (PVS-31A, GPNVG)
10m
-40°C (-40°F) to +60°C (140°F)
77g / 2.65 oz (w/ Battery), 62g / 2.12 oz (w/o Battery)
86mm / 3.4″ (L) × 65mm / 2.6″ (W) × 40mm / 1.6″ (H)
1.5m for 0.5 Hour
