Features:

• Total weight 2.6LB
• Ballistic performance meets NIJ Level III-A (according to NIJ STD 0106.01/0108.01) standard.
• Features a hybrid composite shell for increased strength and a unique geometry for optimal fit.
• Innovative, boltless CAM FIT™ retention quickly adjusts to individual head shapes, providing comfort and stability.
• Zorbium® foam liner protects against impact and allows for an overhead communications headband.
• Customizable fit is achieved through a set of moveable comfort pads.
• A lanyard-compatible Wilcox® shroud* secures any standard NVG mount.
• EXFIL^® Rail 3.0 accessory mounting system is 25% lighter than the previous EXFIL^® Rail 2.0 system and is compatible with all EXFIL^® accessories.

*NOTE: While the Wilcox® W shroud comes standard with the EXFIL® Ballistic, the NVG mount/interface required for attaching night vision devices to the helmet, such as the Wilcox® G24, is not included.

Boltless CAM FIT™ Retention System

• Utilizes BOA® Fit System for optimized stability and fit
• Cam Lock sliders for one-handed adjustment and secure fit
• Left Eye Dominant (LED) option also available

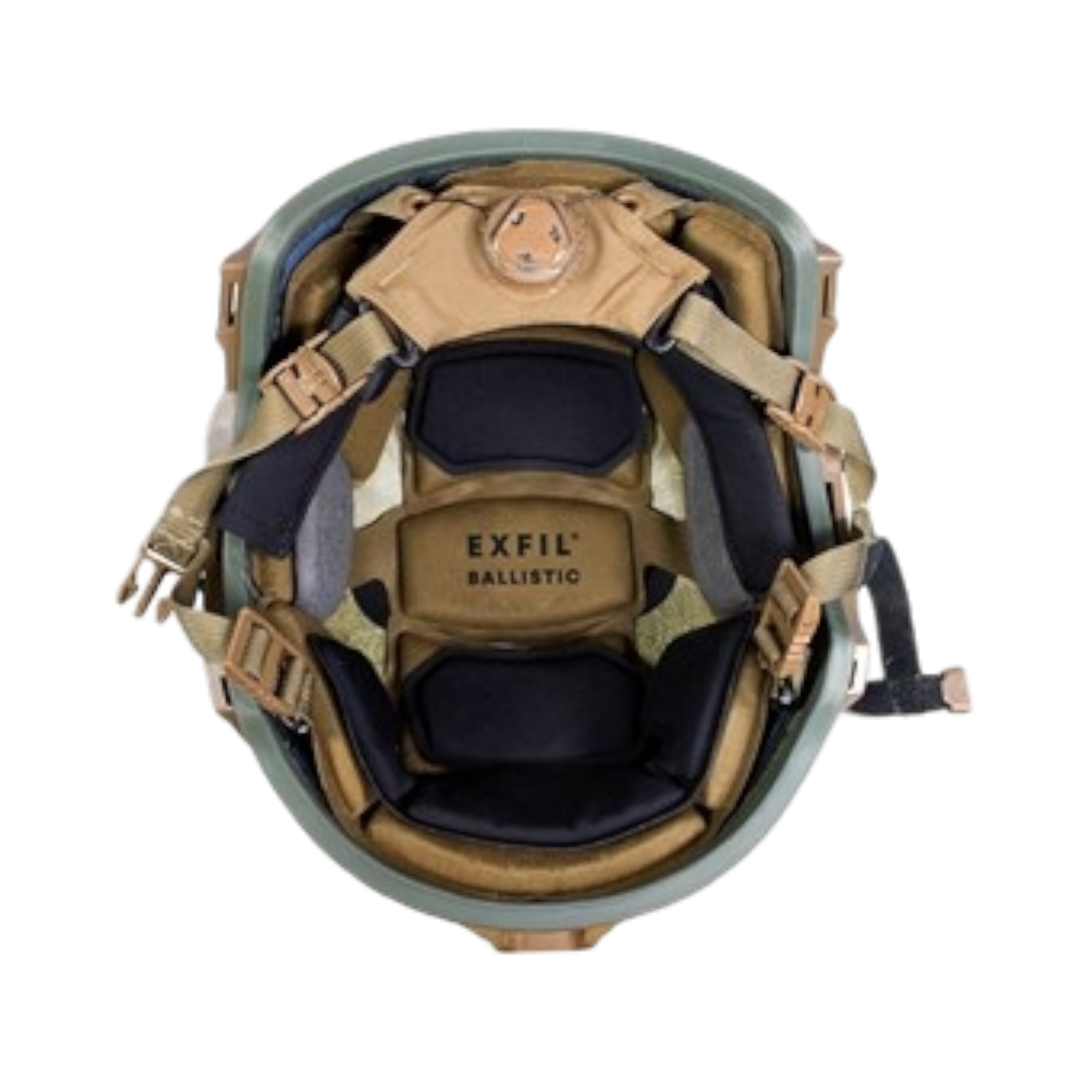

Zorbium® Foam Liner

• 16 customizable comfort pads in two thicknesses
• Removable center pad to easily accommodate overhead comms
• Replacement comfort pads available for purchase

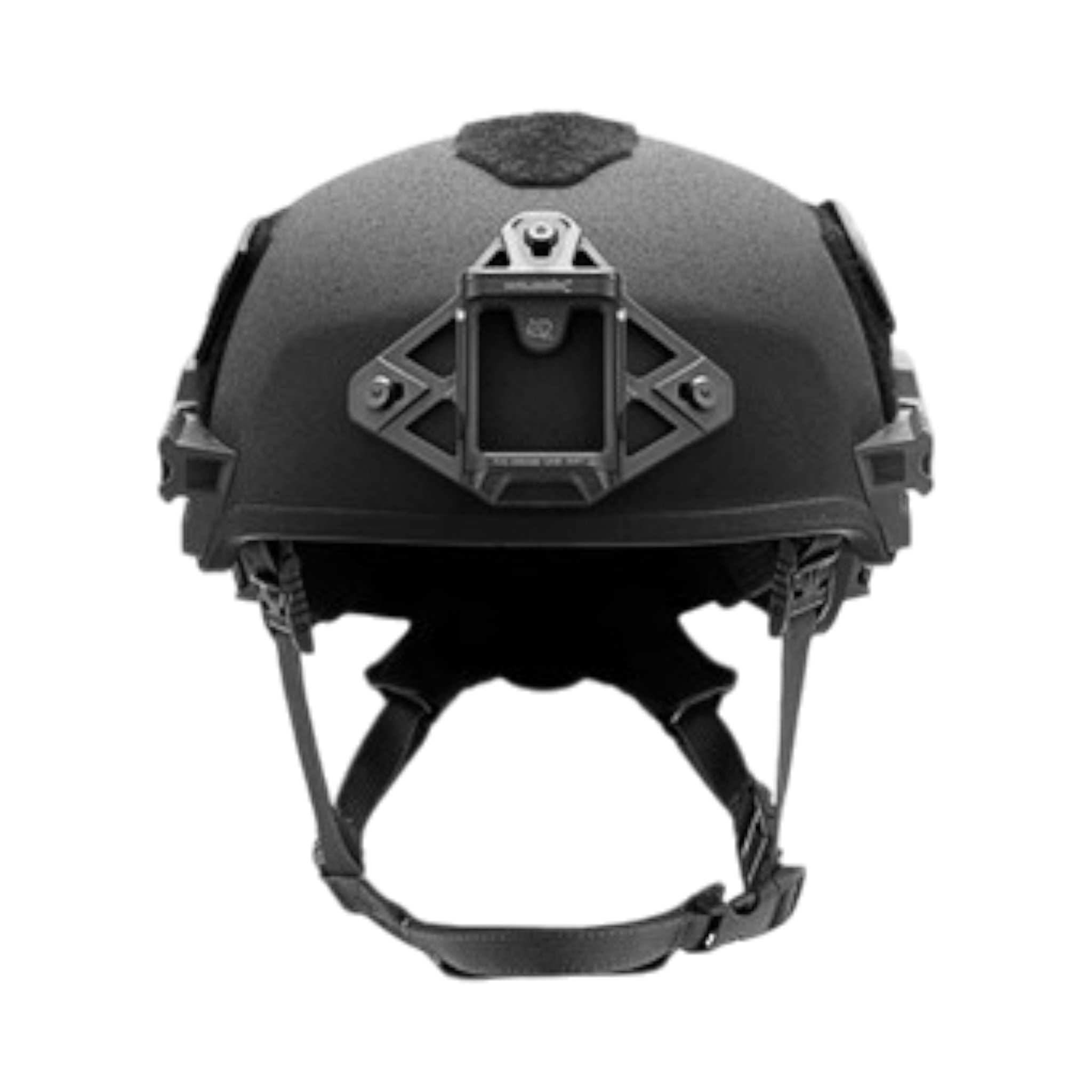

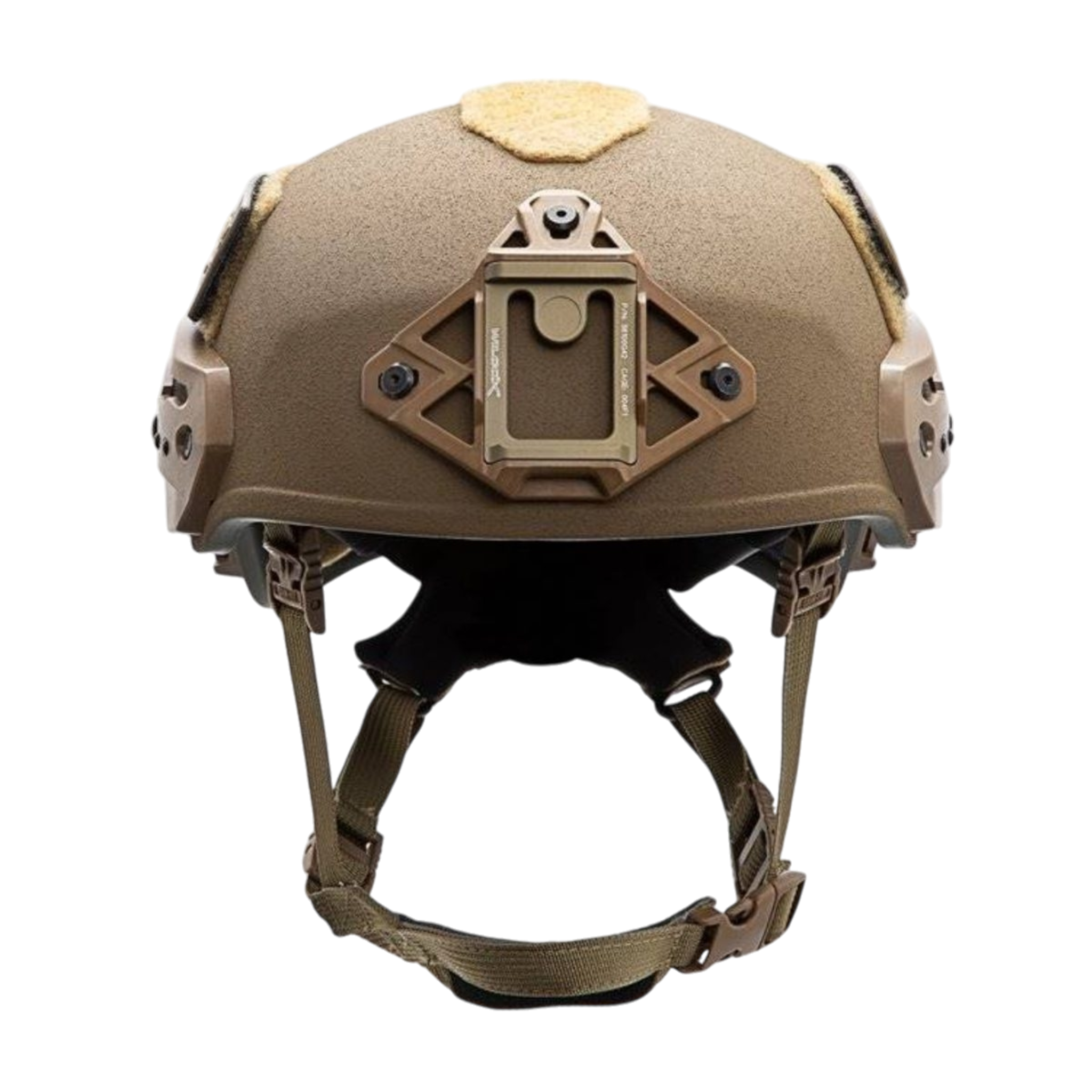

NVG Shroud

• 3-hole Wilcox® W shroud
• Lightweight aerospace grade aluminum mount interface
• Compatible with Wilcox® NVG lanyard
• Compatible with most standardized NVG mount baseplates

EXFIL® Ballistic Accessory Rail System

• Compatible with all standard EXFIL® accessories
• Allows installation of the EXFIL® Ballistic Visor and the EXFIL® Face Shield
• Includes two Magpul® MOE® Picatinny-style rails and mounting hardware
• Includes shock cord kit for stabilizing NVG

Performance

Ballistic Performance

NIJ Level III-A (according to NIJ STD 0106.01/0108.01)

Fragment Performance

17gr V50 ≥ 2400 ft/s (731 m/s)

Backface Deformation

9mm FMJ RN @ 1400 ft/s (425 m/s)
BFD < 25.4 mm all locations

Blunt Impact Performance

Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02) – average below 70G across all impacts and temperatures

Weight:

Size 1 (M/L)

Complete System - 2.6 lbs (1.18 kg)

Shell - 1.75 lbs (0.79 kg)

Size 2 (XL)

Complete System - 2.75 lbs (1.25 kg)

Shell - 1.8 lbs (0.84 kg)

Complete system weight includes helmet shell, accessory rails, impact liner and retention system.

Sizing

Size 1 (M-L)

20.5 – 23.5 - Head Circumference (in)

52 – 60 - Head Circumference (cm)

6 5/8 – 7 1/2 - Hat Size

Size 2 (XL)

23 – 24.75 - Head Circumference (in)

58 – 63 - Head Circumference (cm)

7 3/8 – 7 7/8 - Hat Size

PLEASE NOTE: If you are in between sizes, we recommend going up to the larger size. You can customize the fit with the comfort pads that are included with your helmet purchase. If more pads are needed, we sell additional comfort pad sets.
