Overview

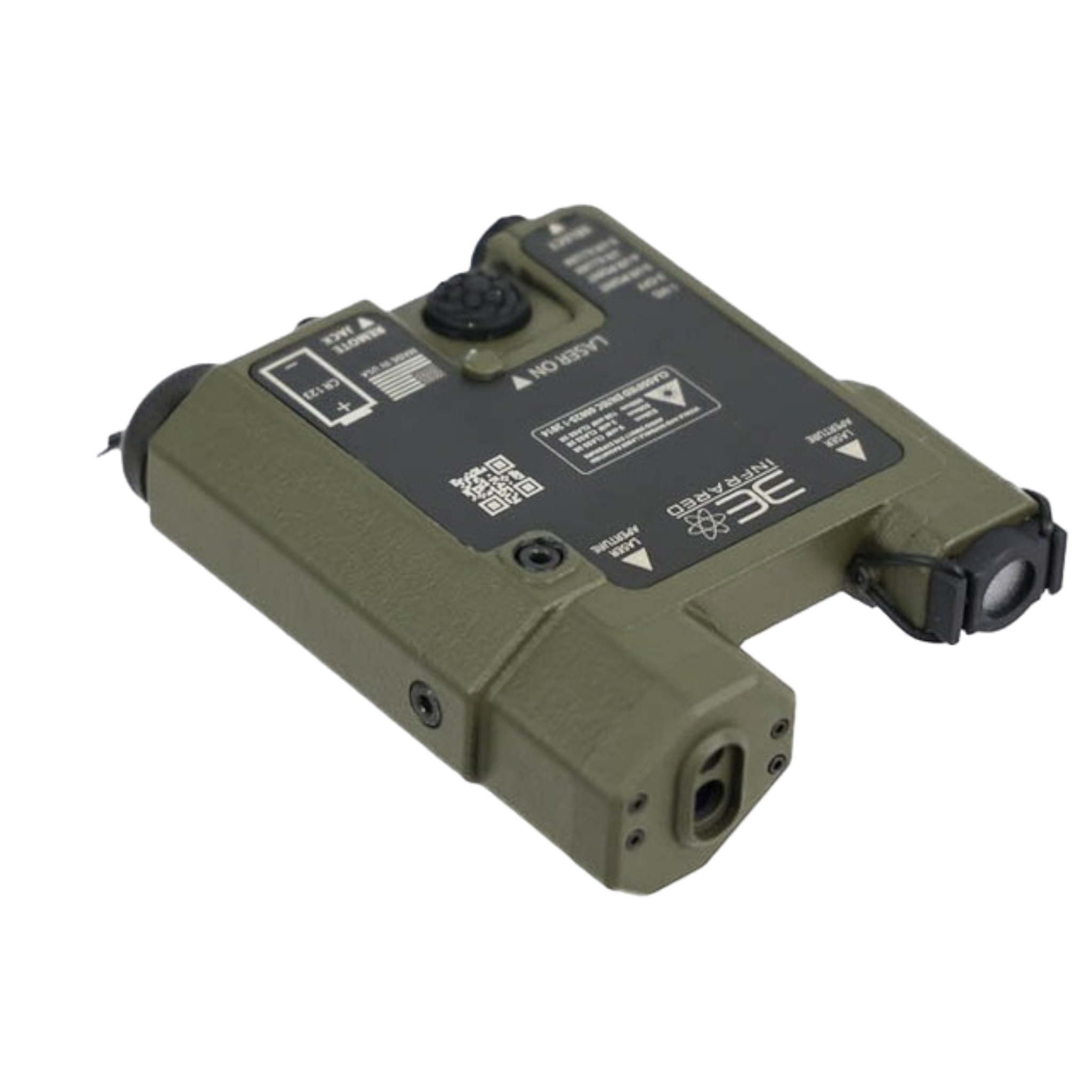

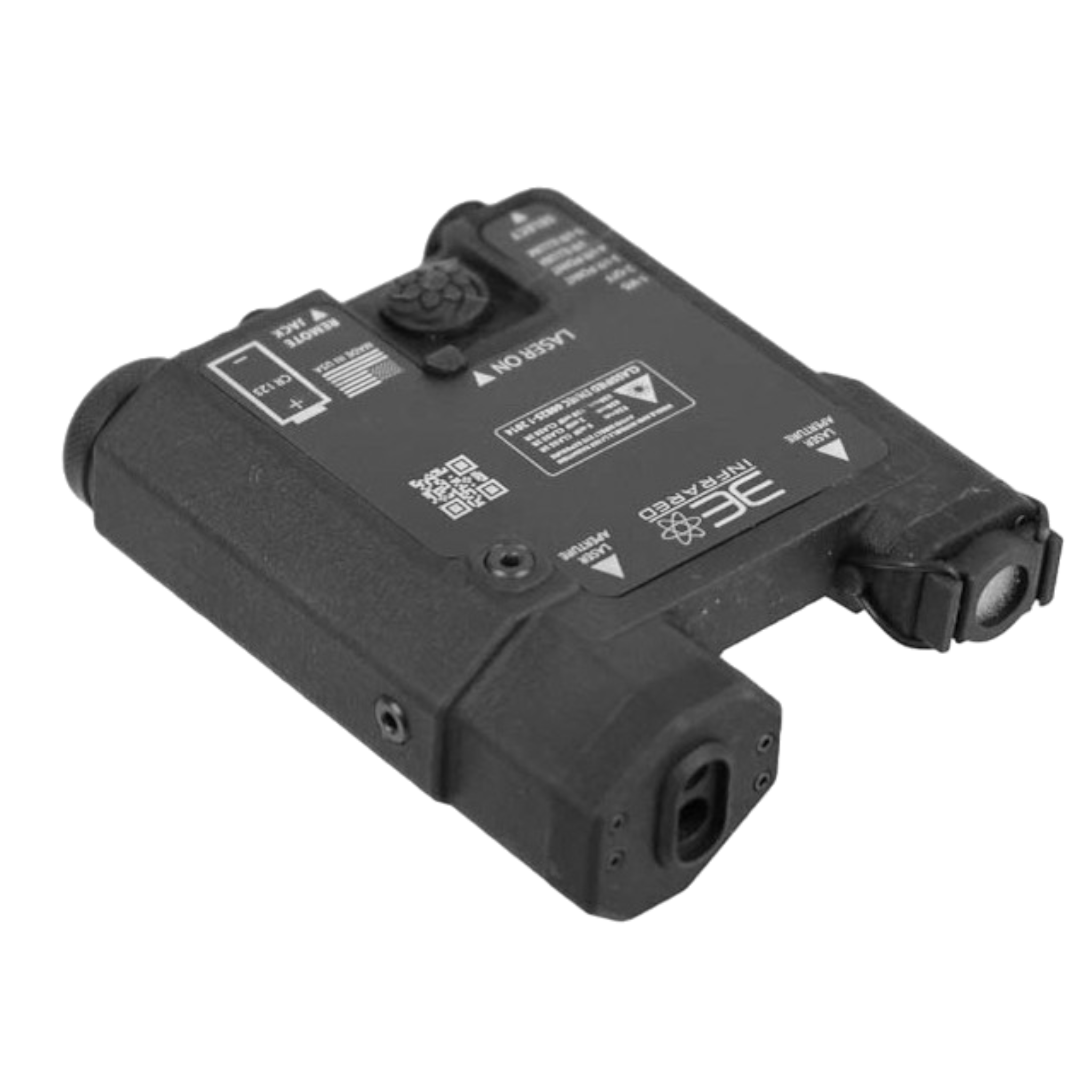

The 3EIR Designate IR-V is a dual-laser aiming device featuring a VCSEL infrared illuminator, housed in an extremely durable and low-profile synthetic nylon body. The co-aligned green visible and infrared lasers enable quick and easy zeroing, while its intuitive controls make operation straightforward with a single mode knob, fire button, and Crane-compatible remote switch port. The tethered flip-up diffuser cap allows for seamless transition between CQB and long-range illumination.

Key Features

Operating Modes:

1. Visible Aiming Laser
2. Infrared Aiming Laser
3. Infrared VCSEL Illuminator
4. Infrared Aiming Laser & VCSEL Illuminator Combined

Specifications

Visible Laser:

• Wavelength: 520nm (Green)
• Output Power: > 5.0 mW (Class 3R)
• Beam Divergence: 0.5 mrad
• Range: > 50 m in daylight

Infrared Laser:

• Wavelength: 830nm (Infrared)
• Output Power: > 2.5 mW (Class 3R)
• Beam Divergence: 0.5 mrad
• Range: > 1000 m

VCSEL Infrared Illuminator:

• Wavelength: 850nm
• Output Power: > 130 mW (Class 3R)
• Beam Divergence: 3 degrees
• Beam Pattern: Round
• Range: > 300 m

Physical Specifications:

• Dimensions: 3.8″ x 2.9″ x 1.17″ (0.5″ above rail)
• Weight:
  • 6.3 oz (without battery)
  • 6.8 oz (with CR123A battery)

Power & Environmental Ratings:

• Battery: 1x CR123A (provides > 5 hours runtime)
• Housing Material: 3D printed synthetic nylon with Cerakote finish
• Embedded Steel Insert: For clamping screw durability
• Clamp Material: 7075-series aluminum
• Operating Temperature: -20°C to 60°C
• Waterproof Rating: IP68
• Warranty: 2 years

Additional Information:

• Made in the USA
• ITAR Regulated – Cannot be shipped internationally
