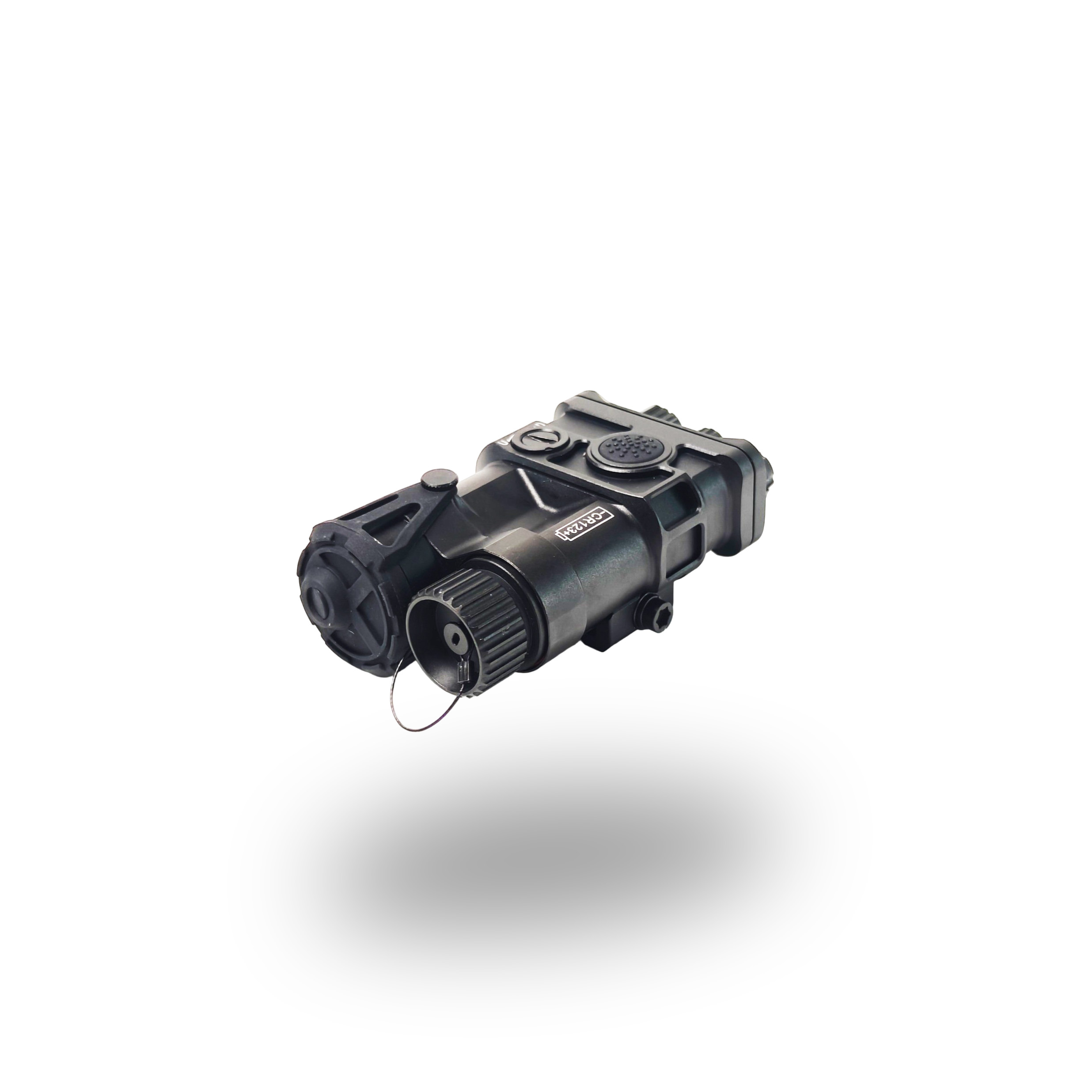

The LS-M6TR is an improved version of the LS-M6 that has a more convenient activation button, Crane plug compatibility, smaller size, and lower weight. The visible laser, IR laser and IR illuminators are all co-aligned, making zeroing easy. The IR illuminator features a perfectly circular and uniform beam pattern and is adjustable for beam width to suit a wide variety of engagement distances, visible out to 2000m+.

The LS-M6TR is a three-in-one laser aiming module that has:

• Visible green laser
• Invisible IR laser
• Invisible IR illuminator with adjustable beam width

The LS-M6TR is full aluminum, hard-coat anodized, features an integral recoil lug, is tightened by a robust clamp with a Torx head, and is rated for recoil up to 1200G.

Output Specifications:

• Green Laser (Wavelength) – 520nm
• Green Laser (Power – Low/High) – 3mw/10mW
• IR Laser (Wavelength) – 830nm
• IR Laser (Power – Low/High) – 0.7mW/5mW
• IR Illuminator (Wavelength) – 830nm
• IR Illuminator (Power – Low/High) – 5mW/30mW

Our version features more intuitive US-Style Markings:

• AL – Aim Low (Low Power Vis Laser) (activate High-Power visible laser by triple-tapping the fire button)‍
• IL – IR Illuminator Low
• ‍DL – Dual Low (Low Power IR Laser & Illuminator)‍
• AH – Aim High (Hi-Power IR Laser)‍
• IH – IR Illuminator High‍
• DH – Dual High (Hi-Power IR Laser & Illuminator)
