Overview

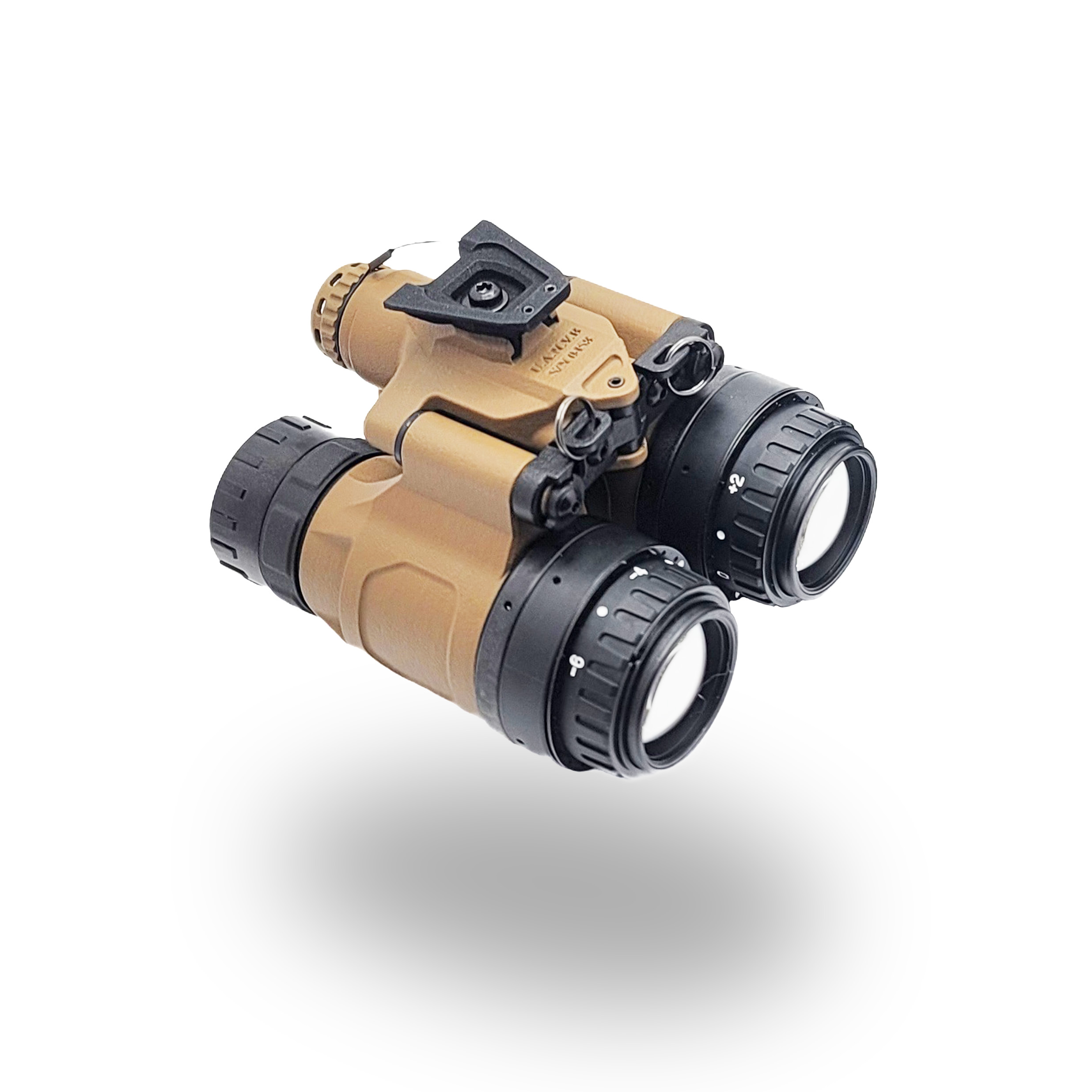

The Nocturn Industries UANVB Katana LEMO is the lightest binocular night vision housing available, with a fully assembled functional weight of 17.76 oz (with battery installed). Its articulating design allows for single or dual-eye operation, making it ideal for use alongside thermal optics, non-passive aiming systems, or while operating vehicles without headspace limitations.

This LEMO version (External Power Model) will only turn on/off via the external battery pack when connected. If using the onboard CR123a battery, the unit functions as normal using its power button.

Key Features

Minimalist, Lightweight & Rugged Design

• Designed for simplicity, with an onboard battery & no remote wiring for reduced weight and helmet bulk.
• Push-button on/off located in the cap for a low-profile, lightweight footprint.
• Independent pod power shutoff when rotated to the side, preventing light backsplash when stowed.
• Friction Lock Interpupillary Adjustment – Set IPD stops quickly and easily without tools or knobs.
• Meets MIL-STD-810G & NATO 1.5-meter drop test standard for rugged durability.

Power Options

• Onboard Power: CR123a battery.
• Outboard Power: LEMO port for external battery packs.
  • Note: Do not use onboard & remote power simultaneously. External battery packs control main power when connected.

Specifications

• Material: Polymer

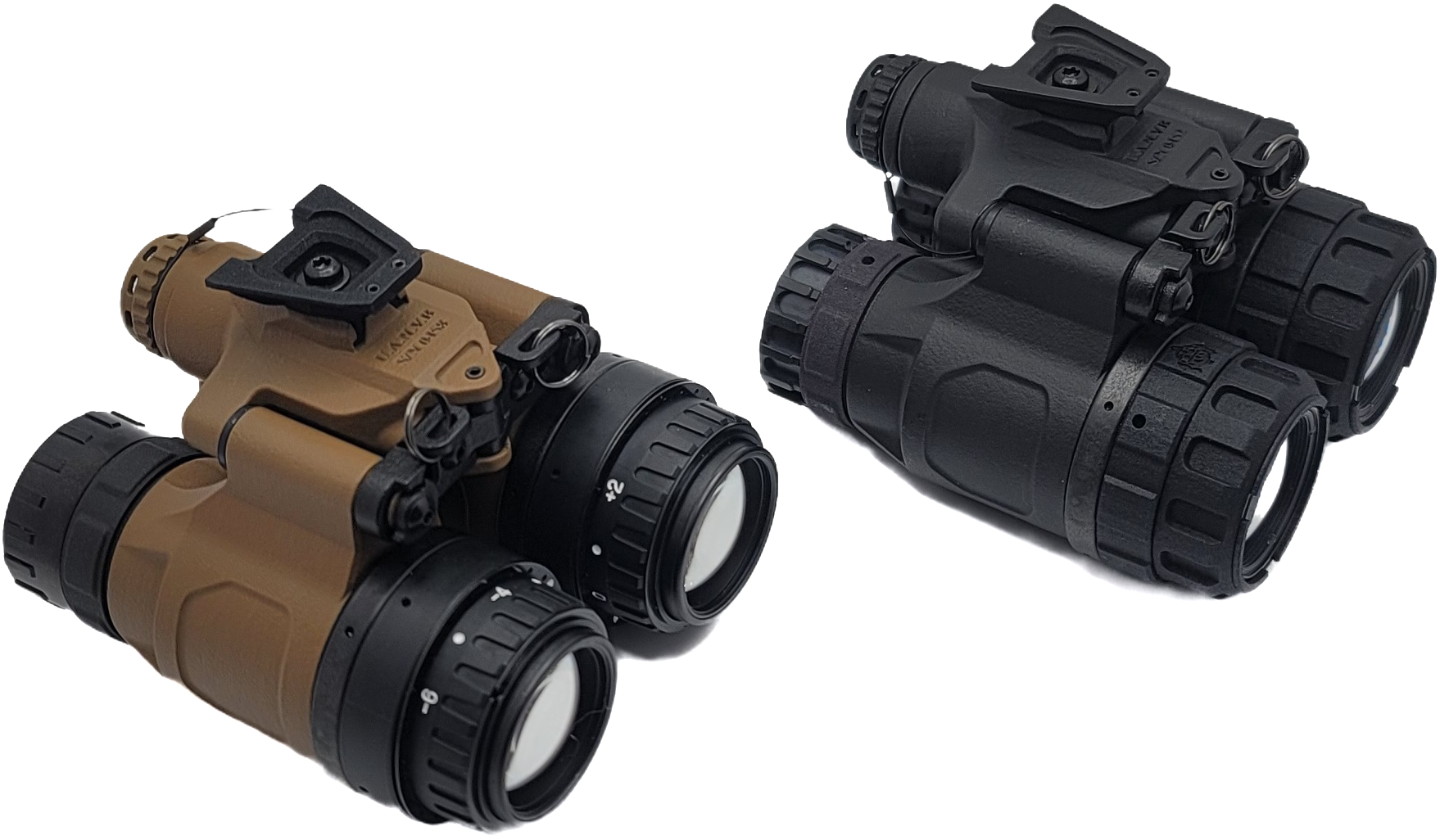

• Color Options:
  • Matte Black (Cerakote)
  • Matte Coyote (Cerakote)
  • Matte OD (Cerakote)
• Weight:
  • Standard PVS-14 Lenses + Image Intensifiers + Battery: 17.76 oz / 1.11 lbs / 503.5g
  • RPO PVS-14 Lenses + Image Intensifiers (No Battery): 15.12 oz / 0.94 lbs / 428.6g
• IR Illuminator: No
• Pod Power Off When Rotated to Side: Yes (Individually)
• Ingress Rating: IP68
• Mounting Style: Dovetail

Why Choose the Nocturn Industries UANVB Katana (LEMO)?

• Lightest binocular housing on the market
• Minimalist & durable design with independent pod power-off
• Friction Lock IPD adjustment – No tools required
• Compatible with both onboard (CR123a) & external (LEMO) power sources
• Exceeds MIL-STD-810G & NATO drop test standards

Experience next-level performance in lightweight night vision housing with the Nocturn Industries UANVB Katana LEMO.
