Overview

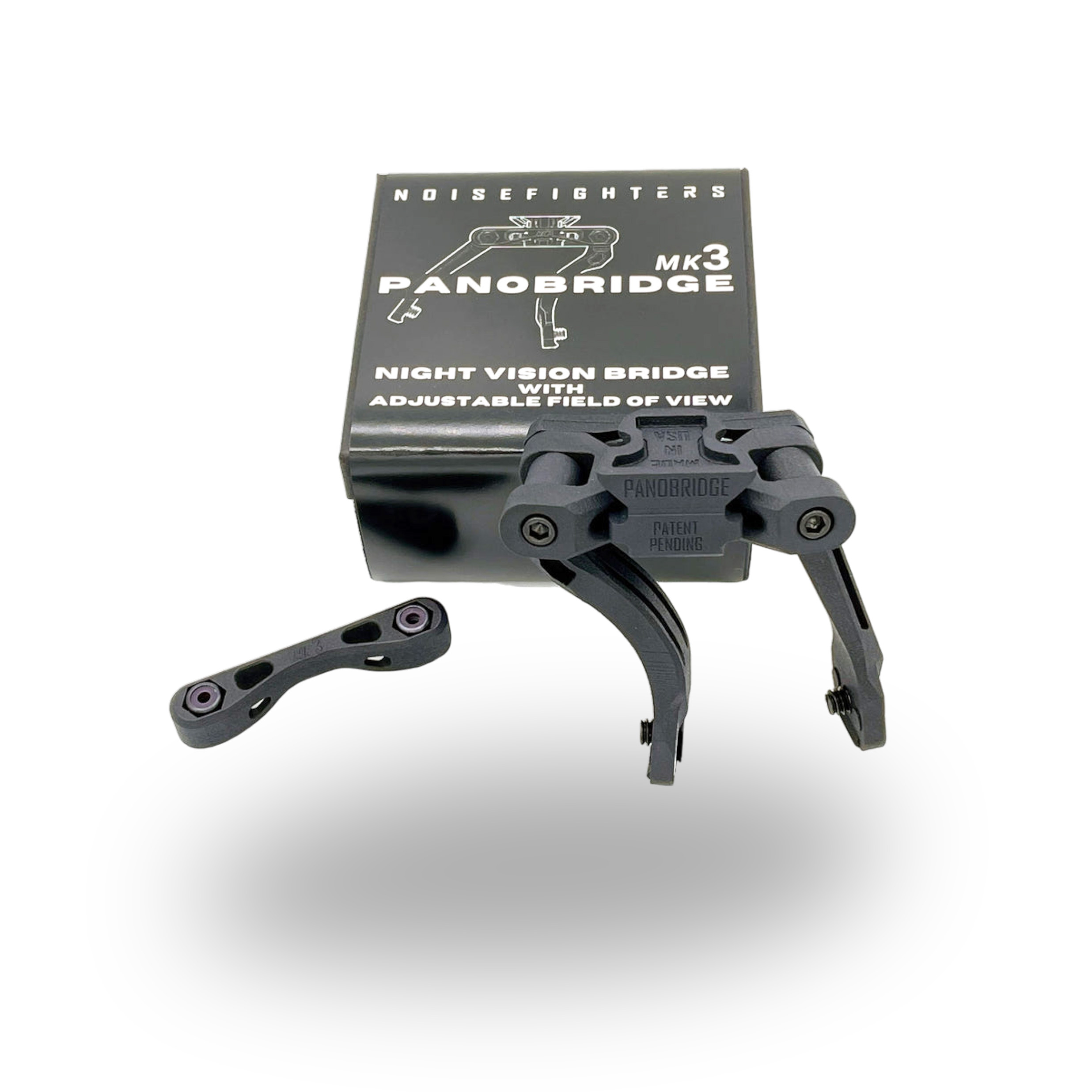

The Noisefighters Panobridge™ is the first-of-its-kind night vision bridge mount, providing up to 75-degree field of view with milspec AN/PVS-14s while weighing 25% less than a standard milspec J-Arm. This innovative mount expands situational awareness without requiring additional specialized training or equipment.

Key Features

Enhanced Field of View

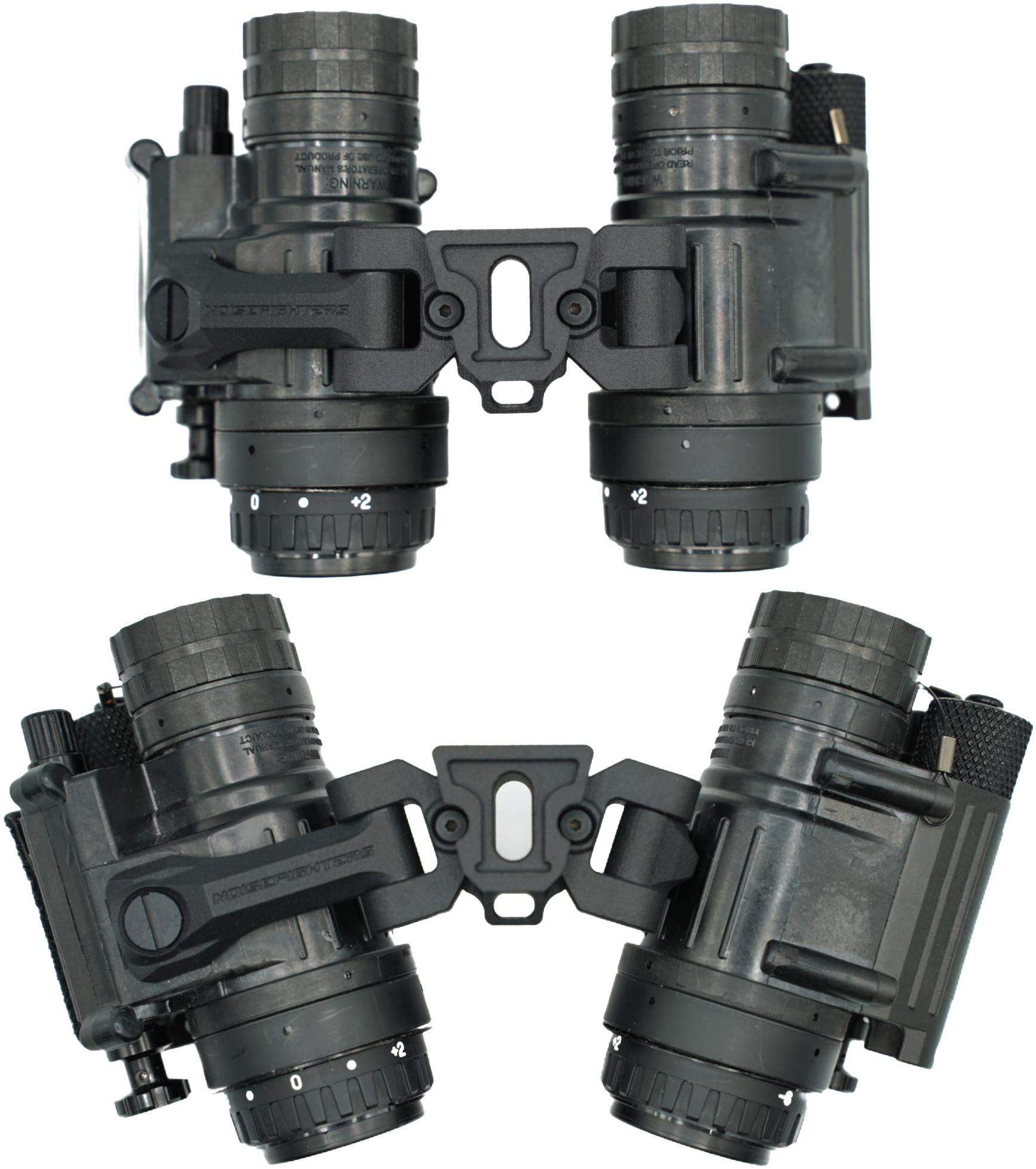

• Expands night vision view up to 75 degrees by angling two monoculars outward.
• Eliminates traditional tube effect, merging images for a more natural panoramic view.
• Adjustable lateral rotation allows customization based on user needs.

Ultra-Lightweight & Durable

• Weighs just 1.5 oz, making it the lightest bridge mount available.
• Built from high-performance Arkema® polymer, ensuring shock resistance and durability.
• Features stainless steel and anodized aluminum fasteners for long-lasting performance.

Improved Situational Awareness

• Allows unaided eye access through gaps between rotated monoculars for:
  • Using handheld thermal imagers
  • Aiming with pistol sights
  • Observing ambient lighting and color contrast
• Each monocular can individually rotate upwards, keeping one eye free if needed.

Optimized Helmet Compatibility

• Mounts via dovetail helmet mounts (not compatible with bayonet-style mounts).
• Collapsible design hugs the helmet for a balanced center of gravity, reducing strain.

Easy Adjustments & Customization

• Friction-based adjustments allow quick lateral and interpupillary modifications.
• Compatible with various night vision monoculars (see compatibility list).
• Optional Cerakote® high-durability ceramic finish available in select colors.

Considerations

• No auto-shutoff system—users must manually turn off monoculars when flipping them up.
• Not a true quad-tube replacement but provides significant weight and cost savings.
• Collimation may be required for paired PVS-14s to ensure proper alignment.

Specifications

Compatibility

• Compatible with: Milspec AN/PVS-14, VYPER-14, MOD3 (Autogain Version Only)
• Not compatible with bayonet-style helmet mounts – requires dovetail mount

Performance

• Field of View: Up to 75 degrees with fully rotated monoculars
• Interpupillary Distance Compatibility: 55 – 75mm

Build & Materials

• Material: Arkema® high-performance polymer
• Finish: Optional Cerakote® ceramic coating

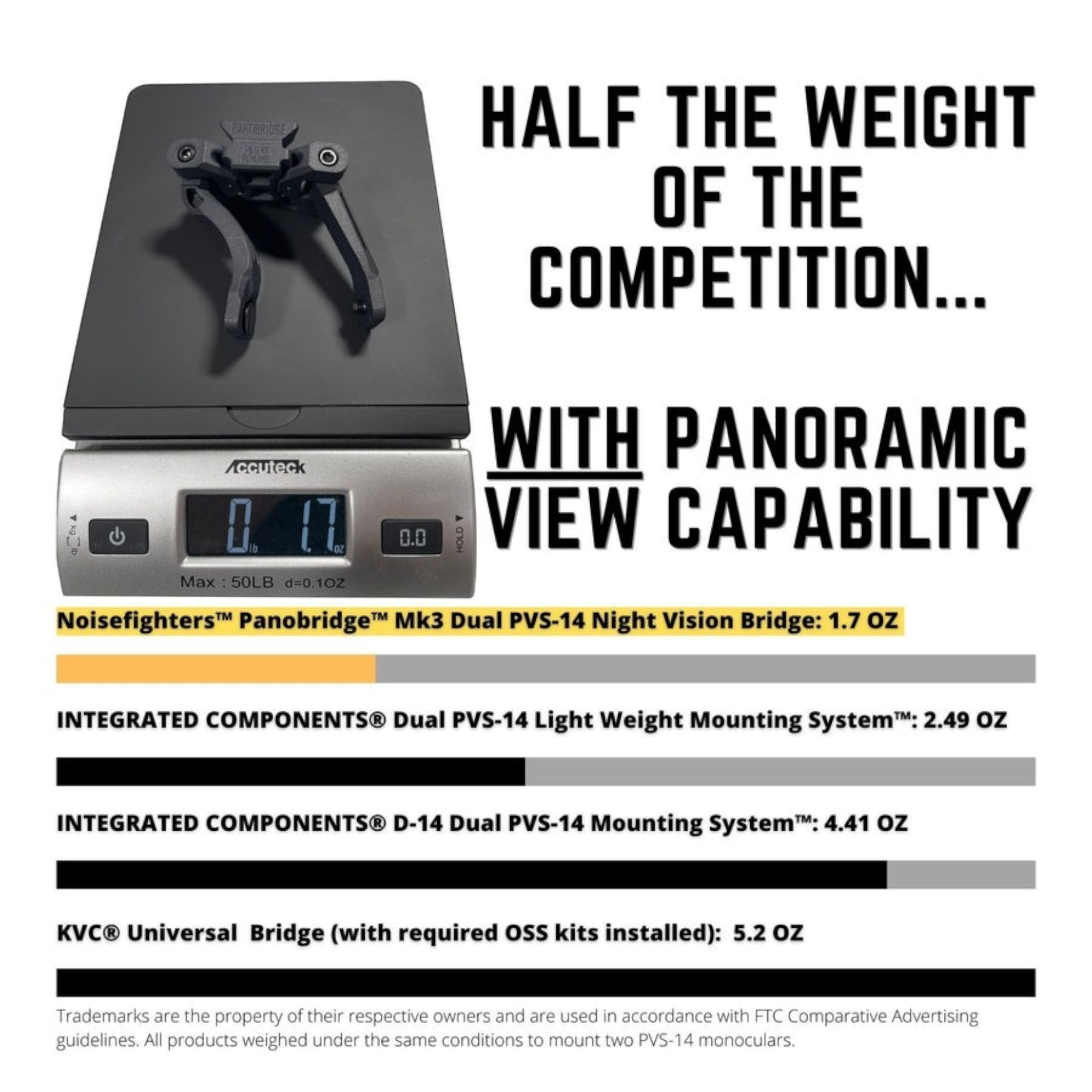

• Weight: 1.5 oz (bridge only)

Mounting & Adjustments

• Helmet Mount: Dovetail-style required
• Lateral Rotation: Independently adjustable monocular positioning
• Interpupillary Distance Adjustment: 55 – 75mm

Estimated Weights with Monoculars

• With two milspec PVS-14s: 23.3 oz
• With two lightweight NL914C monoculars: 21.5 oz

Additional Details

• Lifetime, transferable warranty
• Made & assembled in the U.S.A. by a disabled U.S.M.C. combat veteran-owned company
• ITAR Restricted – For U.S. persons only, no exports allowed

Why Choose Panobridge?

• Innovative panoramic vision without adding weight or complexity.
• Industry-leading lightweight design, reducing strain on the user.
• Flexible and adaptable, offering the best alternative to quad-tube systems at a fraction of the cost.

Experience a whole new way to see at night with the Noisefighters Panobridge™.
